63482-1
Manufacturer:
TE Connectivity
Mfr.Part #:
63482-1
Datasheet:
Description:

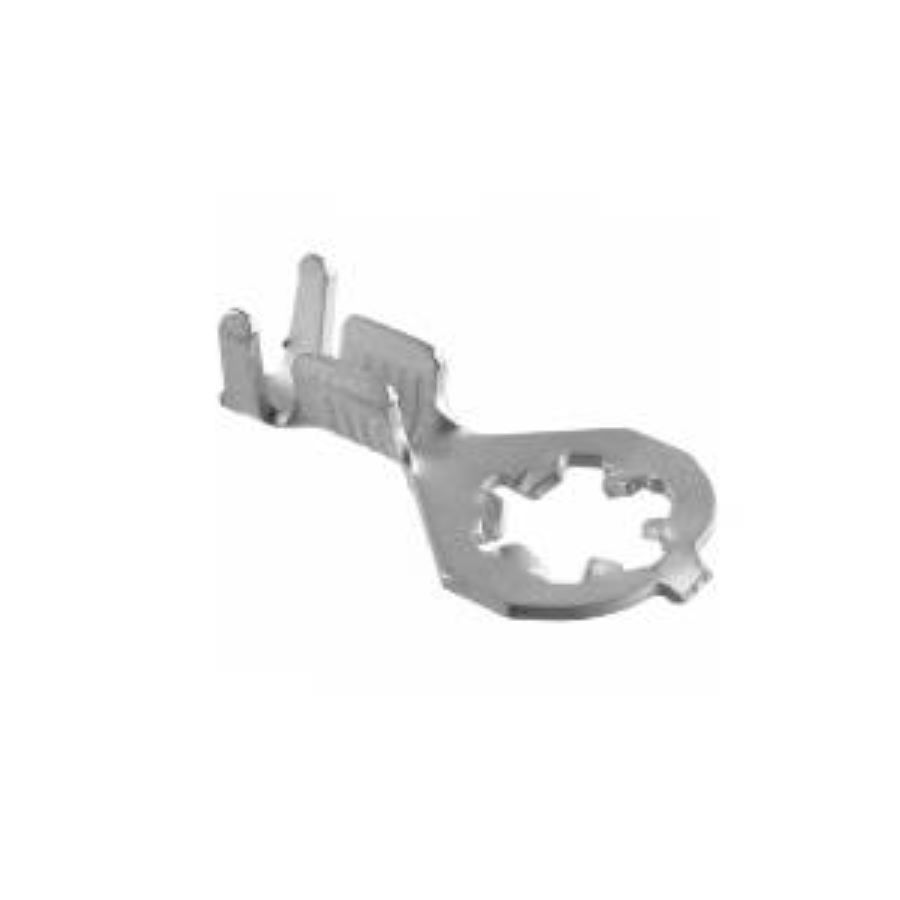

Terminals Free Hanging 14 AWG Female
| Parameter | Value |
|---|---|
| Length | 19.6 mm |
| Termination | Circular |
| Material | Steel |
| Packaging | Reel |
| Depth | 11.3 mm |
| Thickness | 635 µm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Steel |
| Type | Ring |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Gender | Female |
| ELV | Compliant |
| Body Material | Steel |
| Wire/Cable Diameter | 3.683 mm |
| Wire/Cable Gauge | 14 AWG |
| Insulation | Non-Insulated |
| Wire Gauge (Max) | 14 AWG |
| Wire Gauge (Min) | 18 AWG |
| Inside Diameter | 1.62 mm |
| Plating | Tin |
| Termination Style | Crimp |
| Insulation Diameter | 3.683 mm |
| Body Plating | Tin |
| Plating Thickness | 3.81 µm |
| Underplate Material | Nickel |
| Insulated Wire Support | Yes |
| Material Thickness | 635 µm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Sealable | No |
| Stud Diameter | 4.82 mm |
| Heavy Duty | No |
| Stud Size | # 10 |
| Tongue Thickness | 635 µm |
| Government Qualified | No |
Stock: 29664
Distributors
pcbx
pcbxUnit Price$0.33836
Ext.Price$0.33836
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.33836 | $0.33836 |
| 10 | $0.16918 | $1.69180 |
| 50 | $0.13014 | $6.50700 |
| 100 | $0.10011 | $10.01100 |
| 500 | $0.07701 | $38.50500 |
| 1000 | $0.05924 | $59.24000 |
| 3000 | $0.04557 | $136.71000 |
| 5000 | $0.03505 | $175.25000 |
| 10000 | $0.03072 | $307.20000 |
| 30000 | $0.02693 | $807.90000 |
